Rexnord has revolutionized the global flexible coupling.

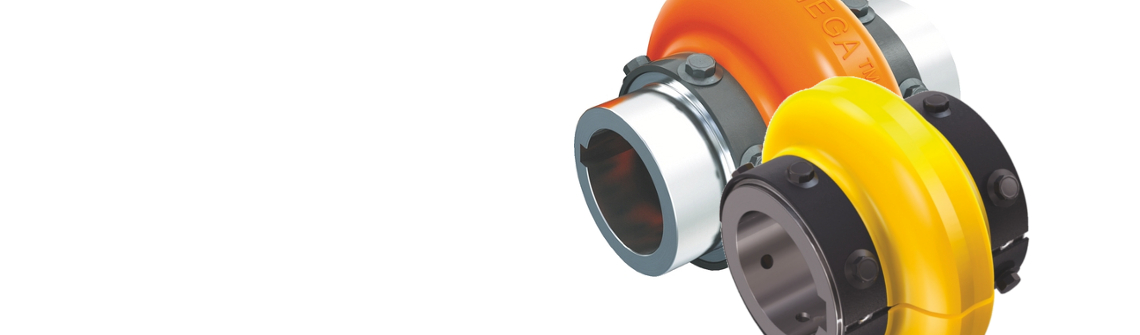

The new Rexnord® Viva coupling is a general purpose coupling ideal for use in industrial applications such as pumps, compressors, blowers, mixers, and many other drive applications. The unique polyurethane split-in half flex element and radial bolting significantly reduces maintenance by simplifying assembly / disassembly and eliminating lubrication. The Viva easily replaces other manufacturer’s couplings and is completely adjustable for both global industry standard and non-standard shaft spacing requirements. The close-coupled coupling is perfect for applications where the shaft gap between connected equipment is relatively close together. The spacer coupling is also perfect for industrial applications requiring longer shaft gaps.
Design Attributes & Advantages
- Two-piece flex element design allows for simple replacement without disturbing hubs or moving and realigning connected equipment.
- Tough polyurethane material is bonded to a corrosion resistant coated shoe, eliminating the need for mechanical clamping hardware.
- Adhesive coated high strength carbon steel shoe resists corrosion.
- Easily aligned reversible hubs accommodate multiple shaft gaps. Hubs are available in rough bore, custom bore, or bushed designs. Optional hub materials are available.
- High-grade capscrews are provided with self-locking nylon thread patches. Stainless steel capscrews are also available.
- Torsionally soft polyurethane element cushions shock loads, accommodates unavoidable misalignment and is compatible with most environments.
- Global design ensures on-site adjustability meeting worldwide standards for rotating equipment shaft gaps
- Retrofits easily with other manufacturer’s couplings for plant standardization
- Element “V” notch design provides a uniform failure area for overload protection if required
- Split-in-half flex element design provides troublefree replacement without moving the hubs or connected equipment
- Radial bolting ensures capscrews are easily accessible in tight spaces
- No lubrication required
- Excellent chemical and environmental aging resistance
- Specially formulated polyurethane flex element for optimal tensile strength and fatigue resistance
- Torsionally soft flex element cushions shock loads and vibration extending equipment life
- High misalignment capacity accommodates misalignment with low reactionary forces
- No need for coupling disassembly to inspect
- Interchangeable hubs allow for reduced inventory
Sizes & Selection / Nomenclature
Applications & Interchange Guide
– Roll Table Drives
